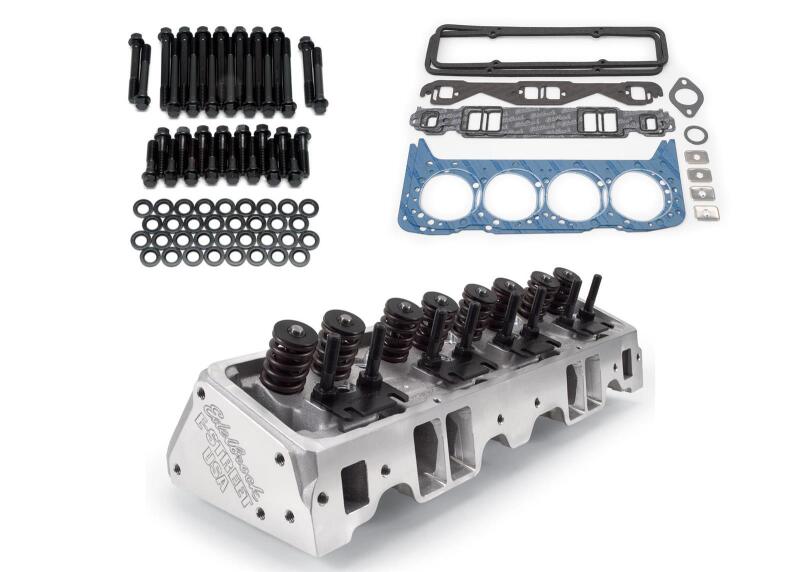

Cylinder Head Specifications: Combustion chamber volume: 70cc / 64cc; Intake runner volume: 185cc; Exhaust runner volume: 60cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.460"; Valve spring maximum lift: .550"; Rocker stud: 3/8" with guide plate; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 23°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1985-2005 | Chevrolet | Astro | Base |
| 1985-1995 | Chevrolet | Astro | CL |
| 1985-1995 | Chevrolet | Astro | CS |
| 1996-2005 | Chevrolet | Astro | LS |
| 1987-2005 | Chevrolet | Astro | LT |
| 1994-1999,2005 | Chevrolet | Blazer | Base |
| 1992-1993 | Chevrolet | Blazer | Cheyenne |
| 1987 | Chevrolet | Blazer | Custom Deluxe |
| 1996-2004 | Chevrolet | Blazer | LS |
| 1995-2001 | Chevrolet | Blazer | LT |
| 1988-1991 | Chevrolet | Blazer | Scottsdale |
| 1987-1994 | Chevrolet | Blazer | Silverado |
| 1994 | Chevrolet | Blazer | Silverado Sport |
| 1999-2001 | Chevrolet | Blazer | Trailblazer |
| 2001-2005 | Chevrolet | Blazer | Xtreme |
| 2003-2005 | Chevrolet | Blazer | ZR2 |
| 1980 | Chevrolet | C10 | Big Ten |
| 1980-1981 | Chevrolet | C10 | Cheyenne |
| 1981-1986 | Chevrolet | C10 | Custom |
| 1980 | Chevrolet | C10 | Custom Deluxe |
| 1981 | Chevrolet | C10 | Deluxe |
| 1980-1986 | Chevrolet | C10 | Scottsdale |
| 1980-1986 | Chevrolet | C10 | Silverado |
| 1981-1986 | Chevrolet | C10 Suburban | Custom |
| 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | C10 Suburban | Scottsdale |
| 1980,1982-1986 | Chevrolet | C10 Suburban | Silverado |
| 1990-1993 | Chevrolet | C1500 | 454 SS |
| 1994-1997 | Chevrolet | C1500 | Base |
| 1988-1998 | Chevrolet | C1500 | Cheyenne |
| 1999 | Chevrolet | C1500 | LS |
| 1988-1992 | Chevrolet | C1500 | Scottsdale |
| 1988-1998 | Chevrolet | C1500 | Silverado |
| 1990-1998 | Chevrolet | C1500 | WT |
| 1992-1999 | Chevrolet | C1500 Suburban | Base |
| 1995-1999 | Chevrolet | C1500 Suburban | LS |
| 1995-1997,1999 | Chevrolet | C1500 Suburban | LT |
| 1992-1994 | Chevrolet | C1500 Suburban | Silverado |
| 1980-1981 | Chevrolet | C20 | Cheyenne |
| 1981-1986 | Chevrolet | C20 | Custom |
| 1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1980-1986 | Chevrolet | C20 | Scottsdale |
| 1980-1986 | Chevrolet | C20 | Silverado |
| 1981-1986 | Chevrolet | C20 Suburban | Custom |
| 1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | C20 Suburban | Scottsdale |
| 1980,1982-1986 | Chevrolet | C20 Suburban | Silverado |
| 1994-1997,1999-2000 | Chevrolet | C2500 | Base |
| 1988-1998 | Chevrolet | C2500 | Cheyenne |
| 1999-2000 | Chevrolet | C2500 | LS |
| 1988-1992 | Chevrolet | C2500 | Scottsdale |
| 1988-1998 | Chevrolet | C2500 | Silverado |
| 1994-1995,1998 | Chevrolet | C2500 | WT |
| 1992-1999 | Chevrolet | C2500 Suburban | Base |
| 1995-1999 | Chevrolet | C2500 Suburban | LS |
| 1995-1997 | Chevrolet | C2500 Suburban | LT |
| 1992-1994 | Chevrolet | C2500 Suburban | Silverado |
| 1980-1981 | Chevrolet | C30 | Cheyenne |
| 1981-1986 | Chevrolet | C30 | Custom |
| 1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1980-1986 | Chevrolet | C30 | Scottsdale |
| 1980-1986 | Chevrolet | C30 | Silverado |
| 1994-1997,1999-2000 | Chevrolet | C3500 | Base |
| 1988-1998 | Chevrolet | C3500 | Cheyenne |
| 1999-2000 | Chevrolet | C3500 | LS |
| 1988-1992 | Chevrolet | C3500 | Scottsdale |
| 1988-1998 | Chevrolet | C3500 | Silverado |
| 1980,1988,1993-2002 | Chevrolet | Camaro | Base |
| 1980-1986 | Chevrolet | Camaro | Berlinetta |
| 1993 | Chevrolet | Camaro | Indianapolis 500 Pace Car |
| 1985-1990 | Chevrolet | Camaro | Iroc-Z |
| 1987 | Chevrolet | Camaro | LT |
| 1980 | Chevrolet | Camaro | Rally Sport |
| 1989-1992,1996-1997 | Chevrolet | Camaro | RS |
| 1992 | Chevrolet | Camaro | RS Heritage Edition |
| 1981-1987 | Chevrolet | Camaro | Sport |
| 1980-1987,1991-2002 | Chevrolet | Camaro | Z28 |
| 1992 | Chevrolet | Camaro | Z28 Heritage Edition |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 1986-1992 | Chevrolet | Caprice | Base |
| 1980-1996 | Chevrolet | Caprice | Classic |
| 1986-1990 | Chevrolet | Caprice | Classic Brougham |
| 1981-1982 | Chevrolet | Caprice | Classic Estate |
| 1980-1981 | Chevrolet | Caprice | Classic Landau |
| 1993-1994 | Chevrolet | Caprice | Classic LS |
| 1987-1990 | Chevrolet | Caprice | Classic LS Brougham |
| 1991-1993 | Chevrolet | Caprice | Classic LTZ |
| 1980 | Chevrolet | Caprice | Classic Sport |
| 1991-1994 | Chevrolet | Commercial Chassis | Base |
| 1988 | Chevrolet | Corvette | 35th Anniversary Edition |
| 1993 | Chevrolet | Corvette | 40th Anniversary Edition |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car |
| 1980-1982,1984-2004 | Chevrolet | Corvette | Base |
| 1982,1996 | Chevrolet | Corvette | Collector's Edition |
| 1996 | Chevrolet | Corvette | Grand Sport |
| 1986,1995,1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001-2004 | Chevrolet | Corvette | Z06 |
| 1990-1995 | Chevrolet | Corvette | ZR-1 |
| 1980-1987 | Chevrolet | El Camino | Base |
| 1981-1986 | Chevrolet | El Camino | Conquista |
| 1980-1981 | Chevrolet | El Camino | Royal Knight |
| 1980-1987 | Chevrolet | El Camino | SS |
| 1996-2014 | Chevrolet | Express 1500 | Base |
| 1996-2014 | Chevrolet | Express 1500 | LS |
| 2001-2002,2006-2014 | Chevrolet | Express 1500 | LT |
| 1996-2006,2018-2021 | Chevrolet | Express 2500 | Base |
| 1996-2006,2018-2021 | Chevrolet | Express 2500 | LS |
| 2006,2018-2021 | Chevrolet | Express 2500 | LT |
| 1996-2002,2018-2021 | Chevrolet | Express 3500 | Base |
| 1996-2002,2018-2021 | Chevrolet | Express 3500 | LS |
| 2018-2021 | Chevrolet | Express 3500 | LT |
| 1983 | Chevrolet | G10 | Base |
| 1980-1995 | Chevrolet | G10 | Beauville |
| 1981-1984,1986-1987 | Chevrolet | G10 | Bonaventure |
| 1980-1995 | Chevrolet | G10 | Chevy Van |
| 1980-1995 | Chevrolet | G10 | Sportvan |
| 1980-1995 | Chevrolet | G20 | Beauville |
| 1983-1984 | Chevrolet | G20 | Bonaventure |
| 1980-1995 | Chevrolet | G20 | Chevy Van |
| 1980-1981 | Chevrolet | G20 | Nomad |
| 1980-1995 | Chevrolet | G20 | Sportvan |
| 1980-1996 | Chevrolet | G30 | Beauville |
| 1983-1984 | Chevrolet | G30 | Bonaventure |
| 1980-1996 | Chevrolet | G30 | Chevy Van |
| 1980-1996 | Chevrolet | G30 | Hi-Cube |
| 1980-1996 | Chevrolet | G30 | Sportvan |
| 1980-1985 | Chevrolet | Impala | Base |
| 1981-1982 | Chevrolet | Impala | Estate |
| 1980 | Chevrolet | Impala | Sport |
| 1994-1996 | Chevrolet | Impala | SS |
| 1980-1981 | Chevrolet | K10 | Cheyenne |
| 1981-1986 | Chevrolet | K10 | Custom |
| 1980 | Chevrolet | K10 | Custom Deluxe |
| 1981 | Chevrolet | K10 | Deluxe |
| 1980-1986 | Chevrolet | K10 | Scottsdale |
| 1980-1986 | Chevrolet | K10 | Silverado |
| 1981-1986 | Chevrolet | K10 Suburban | Custom |
| 1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K10 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | K10 Suburban | Scottsdale |
| 1980,1982-1983,1985-1986 | Chevrolet | K10 Suburban | Silverado |
| 1994-1997 | Chevrolet | K1500 | Base |
| 1988-1998 | Chevrolet | K1500 | Cheyenne |
| 1999 | Chevrolet | K1500 | LS |
| 1988-1992 | Chevrolet | K1500 | Scottsdale |
| 1988-1998 | Chevrolet | K1500 | Silverado |
| 1991 | Chevrolet | K1500 | Sport |
| 1990-1998 | Chevrolet | K1500 | WT |
| 1992-1999 | Chevrolet | K1500 Suburban | Base |
| 1995-1999 | Chevrolet | K1500 Suburban | LS |
| 1995-1997,1999 | Chevrolet | K1500 Suburban | LT |
| 1992-1994 | Chevrolet | K1500 Suburban | Silverado |
| 1980-1981 | Chevrolet | K20 | Cheyenne |
| 1981-1986 | Chevrolet | K20 | Custom |
| 1980 | Chevrolet | K20 | Custom Deluxe |
| 1981 | Chevrolet | K20 | Deluxe |
| 1980-1986 | Chevrolet | K20 | Scottsdale |
| 1980-1983,1985-1986 | Chevrolet | K20 | Silverado |
| 1981-1986 | Chevrolet | K20 Suburban | Custom |
| 1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K20 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | K20 Suburban | Scottsdale |
| 1980,1982-1983,1985-1986 | Chevrolet | K20 Suburban | Silverado |
| 1994-1997,1999-2000 | Chevrolet | K2500 | Base |
| 1988-1998 | Chevrolet | K2500 | Cheyenne |
| 1999-2000 | Chevrolet | K2500 | LS |
| 1988-1992 | Chevrolet | K2500 | Scottsdale |
| 1988-1998 | Chevrolet | K2500 | Silverado |
| 1994-1995,1998 | Chevrolet | K2500 | WT |
| 1992-1999 | Chevrolet | K2500 Suburban | Base |
| 1995-1999 | Chevrolet | K2500 Suburban | LS |
| 1995-1997 | Chevrolet | K2500 Suburban | LT |
| 1992-1994 | Chevrolet | K2500 Suburban | Silverado |
| 1980-1981 | Chevrolet | K30 | Cheyenne |
| 1981-1986 | Chevrolet | K30 | Custom |
| 1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1980-1986 | Chevrolet | K30 | Scottsdale |
| 1980-1986 | Chevrolet | K30 | Silverado |
| 1994-1997,1999-2000 | Chevrolet | K3500 | Base |
| 1988-1998 | Chevrolet | K3500 | Cheyenne |
| 1999-2000 | Chevrolet | K3500 | LS |
| 1988-1992 | Chevrolet | K3500 | Scottsdale |
| 1988-1998 | Chevrolet | K3500 | Silverado |
| 1980 | Chevrolet | K5 Blazer | Cheyenne |
| 1981-1986 | Chevrolet | K5 Blazer | Custom |
| 1980 | Chevrolet | K5 Blazer | Custom Deluxe |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1984 | Chevrolet | K5 Blazer | Scottsdale |
| 1980-1986 | Chevrolet | K5 Blazer | Silverado |
| 1980-1981 | Chevrolet | Malibu | Base |
| 1980-1983 | Chevrolet | Malibu | Classic |
| 1980 | Chevrolet | Malibu | Classic Estate |
| 1980-1981 | Chevrolet | Malibu | Classic Landau |
